2,700.00 EGP2,900.00 EGP

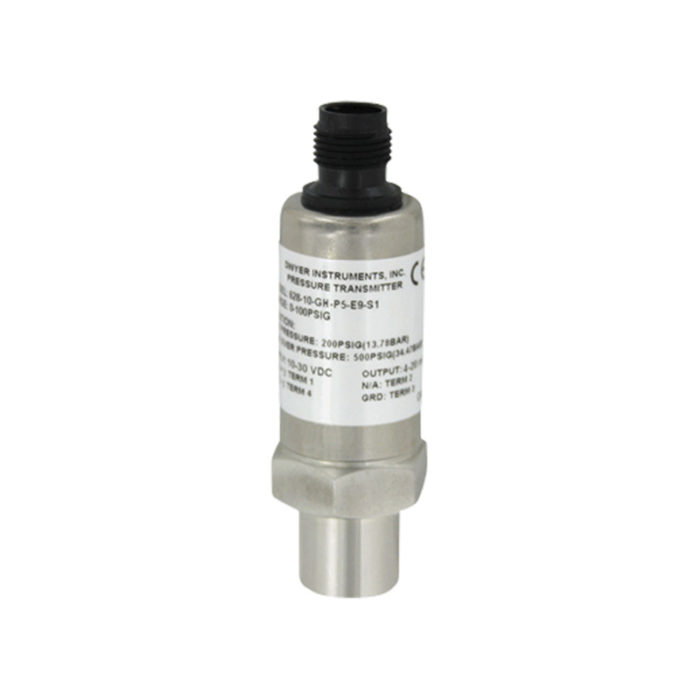

Series 628 pressure transmitters are ideal for OEM applications, with 1% full-scale precision sensors. The corrosion-resistant 316L stainless steel wetted parts allow Series 628 transmitters to measure pressure in a multitude of processes, from hydraulic oils to chemicals. The 628 series is available with absolute and relative pressure ranges up to 600 bar.

Product Applications

  • Compressors

  • Pumping Systems

  • Irrigation System Pressure

  • Industrial Process Monitoring

  • Hydraulic

Choose an option
  • Choose an option
  • -1 - 0 Bar
  • 0 - 1.6 Bar
  • 0 - 2 Bar
  • 0 - 0.5 Bar
  • 0 - 10 Bar
  • 0 - 16 Bar
  • 0 - 25 Bar
  • 0 - 40 Bar
  • 0 - 100 Bar
  • 0 - 160 Bar
  • 0 - 250 Bar
  • 0 - 400 Bar
  • 0 - 600 Bar
Clear

Description

  • Robust 316 SS oil filled sensor provides shock and vibration resistance insuring stability in controlling pressure for process applications
  • NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
  • A wide range of models and connections that can meet pressure measurement specifications from low to very high

Fluid: Compatible gases and liquids.
Wetted parts: 316L stainless steel
Accuracy: 1% F.S.
Temperature limit: 0 to 200 ° F (-18 to 93 ° C).
Compensated temperature range: 0 to 175 ° F (-18 to 79 ° C).
Thermal effect: ± 0.02% FS / ° F. (includes zero and span).
Pressure limits: See data sheet
Power Requirements: 10 to 30 Vdc
Output signal: 4 to 20 mA,
Response time: 300 ms.
Cycle resistance: 0 to 1000 Ohm max. R max = 50 (Vps-10) Ohm (4 to 20 mA output)
Stability: 1.0% V / year (typ.).
Current consumption: 38 mA maximum
Electrical connection: M12
Process connection: 1/4 “G
Classification of the enclosure: NEMA 4X (IP66).
Mounting orientation: Mount in any position.
Weight: 10 ounces (283 g).
Agency approvals: CE, NSF, UL.
